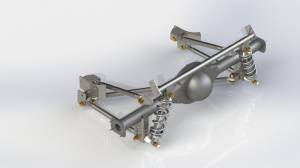

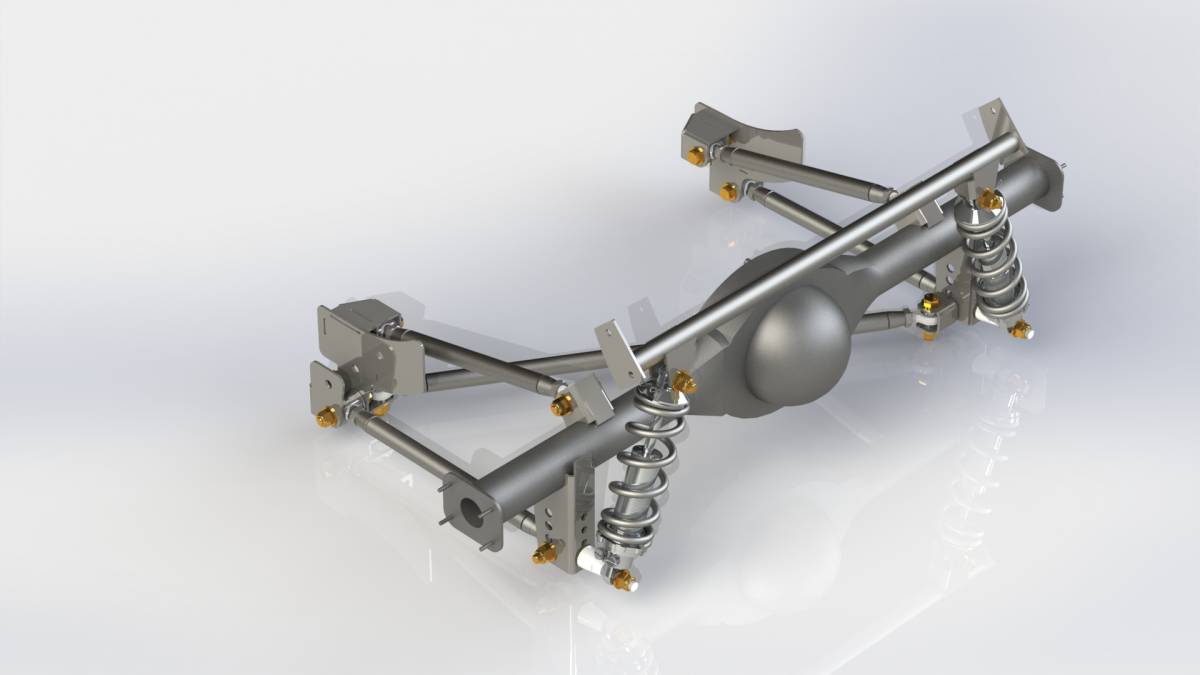

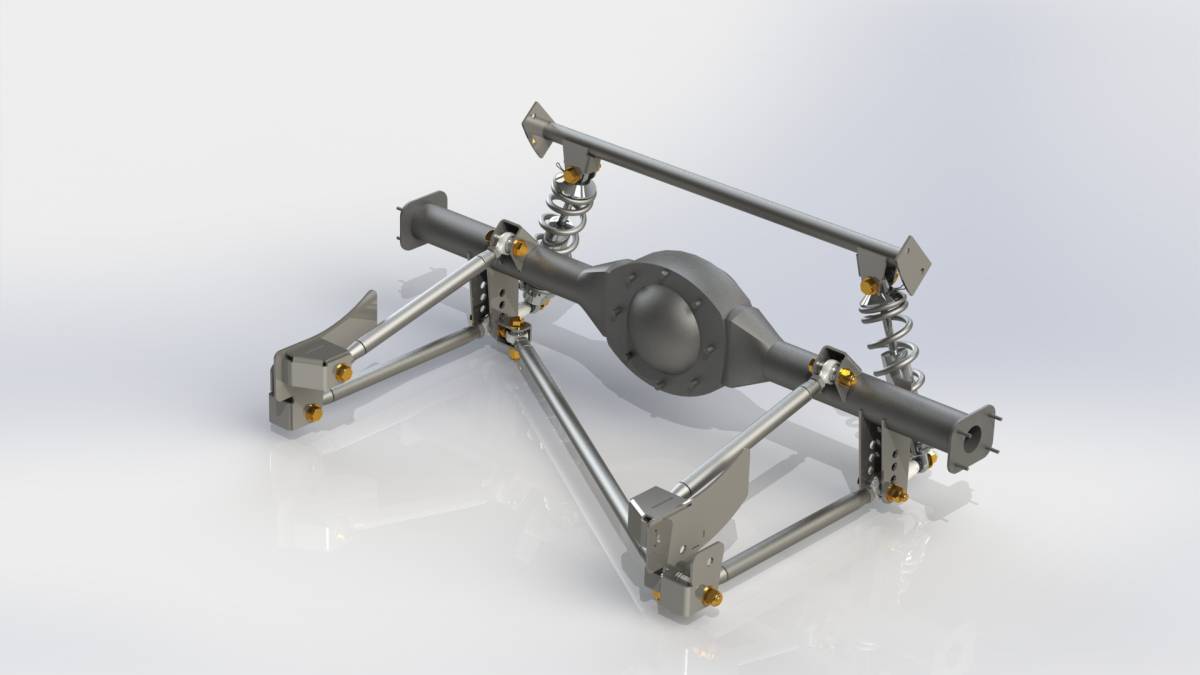

4-Link MOPAR Parallel Coilover Rear Suspension System

Coilover Rear Suspension System

CFS-RS-5500
  • Designed for use with Mopar 8.75-inch, Dana 60, and Ford 9-inch differentials
  • Requires welding
  • Comes in Matte Black powder coat
  •

    Looking for brakes to complement your suspension upgrades?

    Check out our comprehensive selection of high-quality brake systems and components for your vehicle.

    Browse Brakes
    Availability: Available - ships within 5 days.
    Shipping: Ships free via UPS Ground.
    Pricing: $2,499.00
    Qty:
    Free Shipping!

    Description

    Our 4-Link Coilover Rear Suspension Systems for MOPAR muscle cars are designed to provide exceptional traction, stability, handling, control, safety and performance, making your MOPAR muscle car a contender. This weld-in system is designed in-house on the most advanced SolidWorks CAD systems. These 4-link systems are eager performers that release unsprung weight while increasing the torsional rigidity of the rear end. Wheel hop is eliminated and rear body roll is controlled.  Lighter, stronger and more precise than the stock suspension, these systems are as much at home on the street as they are on the strip, autocross or road race courses.

    4-Link coil over systems come in two configurations: Parallel and triangulated.  Parallel systems have the upper and lower trailing arms running parallel to each other, and the system requires a panhard bar to prevent it from shifting side-to-side.  The panhard bar is adjustable, just as the rest of the system is.  On triangulated systems, one set of trailing arms, either the upper or lower, are angled inward creating a triangle.  No panhard bar is required for these systems because the triangle prevents the system from moving side-to-side.

    • Designed for use with Mopar 8.75-inch, Dana 60, and Ford 9-inch differentials
    • Comes in Matte Black powder coat
    • On-car adjustable trailing arms
    • TIG welded CNC machined threaded inserts for ease of adjustment and strength
    • Double adjustable Viking coilover shocks
    • Viking high tensile steel springs
    • Provides maximum wheel clearance
    • Allows for mini-tub
    • Custom laser cut and CNC formed brackets
    • Custom adjustable panhard/track bar
    • Chromoly adjustable rod ends
    • Forged adjustable bushing housings with performance polygraphite bushings
    • All new Grade 8 hardware
    • Welding required
    • Differential housing not included.

    Details

    Shipping Information

    • Item Requires Shipping
    • 79.0 lbs.
    • W12.0000” x H12.0000” x L24.0000”
    • Free Shipping!
    • Ships free via UPS Ground.
