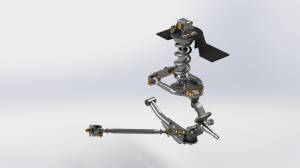

Front Coilover Conversion System (1968 - 1971 Ford Ranchero)

Coilover Suspension System

CO-2390

Designed specificcally for your 1968 - 1971 FORD Ranchero

Converts your front suspension to an adjustable coil over system that adds stability, handling, control and performance.  A true bolt-in package that includes everything you need.

Looking for brakes to complement your suspension upgrades?

Check out our comprehensive selection of high-quality brake systems and components for your vehicle.

Browse Brakes
Availability: This item requires 2 to 3 week lead time
Pricing: $2,149.00

Customize Your Item

- Engine -
 * required
Qty:

Description

We can help you improve your early Mustang, Falcon, Fairlane, Comet, Cougar, Torino, Ranchero and Maverick with today's handling and performance! A lot of '60s and '70s  vehicles had sloppy front end control. The stamped upper and lower control arms with rubber bushings flex a lot, over every bump and around every turn. Our bolt-in front coil over conversion system for Ford and Mercury  vehicles adds handling, safety, control and performance by controlling flex, managing spring travel, dampening harsh road conditions and correcting some of the factory geometry. The upper control arm is fully adjustable and can provide up to 5 degrees of positive caster on most cars.  The supplied tubular control arms are made of seamless DOM steel, ball joint housings are custom laser cut and CNC formed, and our bushings are custom polygraphite that will not squeak or prematurely wear.  This system is a direct bolt-in and does not require any welding or cutting. We also have adjustable strut rod kits, designed to securely locate the lower control arm in all driving conditions.  The strut rod kits are a recommended option. There are other-coil over conversions in the marketplace, but ours is designed to carry the vehicle load correctly, just as the manufacturer intended. The 60s and early 70s Ford vehicles were designed to hold the vehicle weight on the upper control arm, and that’s where we keep it. Some of our competitors transfer the weight to the lower control arm, which was never designed to carry the weight of the vehicle.  With our systems, everything will bolt right back on:  strut rods, spindles, brakes and sway bar.  If you want a little more adjustablity, we do have an optional adjustable strut rod kit. Want performance, handling, control and safety in a true bolt-in package? With our system you get it all. Your front coilover conversion system is complete …nothing else to buy:
  • CNC precision cut and bent DOM seamless round tube upper and lower control arms
  • Gloss black powder coat
  • Laser cut and CNC formed ball joint housings
  • New Moog ball joints
  • Double adjustable Viking coilover shocks - USA made
  • Viking high tensile steel coilover springs
  • Laser cut and CNC formed brackets
  • New polyurethane spring isolators
  • All new Grade 8 hardware
  • All parts packaged foam-in-place
  • Complete instructions
  • Direct bolt-in.
  • No cutting or welding.  Some drilling may be required.
  • Adjustable strut rod kits optional.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 61.0 lbs.
  • W12.0000” x H12.0000” x L24.0000”
